THE NEW Mini-B IS A RUNAWAY HIT!
CHURCHES ACROSS THE LAND
LOVE THE VINTAGE LOOK AND SOUND!

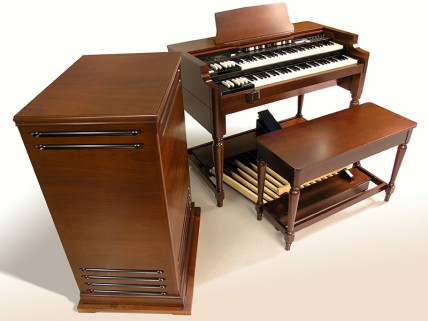

The look and feel of the mighty mighty B-3 is now available for every Church, Chapel, School, Stage, and Home. The Hammond Mini-B carries on the legend, offering the sound and response that has made music a grander place. No matter what style of music you play, no matter the denomination of your church, the Mini-B plays like tradition, sounds like tradition, and now, looks like tradition. The Mini-B is bundled with a special edition 40 watt Leslie model 122XB-SE, built especially for the Mini-B which puts the power that you have come to expect at your fingertips. If you have to go mobile, no worries! The heart of the Mini-B, the single-manual XK-3c, slides directly out of the back with no tools in 5 minutes, and slides right back in when you come off the road. Unlike the traditional XK-system, the Mini-B is shipped completely assembled from the factory with 25 note pedalboard and matching bench. At a price that makes it affordable for everyone, you too can have a genuine brand new Hammond and Leslie with a comprehensive factory Warranty, and all the confidence that only a brand new organ can bring.

Keyboard
61 note x 2 and 25 note pedal keyboard

Preset
12 Reverse color keys presets x 2

Drawbars
2 set of 9 and 1 set of 2 drawbars

Sound generator
Vase III sound generator creates 96 digital tone-wheels
Tone-wheel leakage noise and motor-noise are adjustable wheel by wheel

Polyphony
Full polyphony (unlimited)

Leslie
Next generation digital Leslie and scanner vibrato

Pre-amp
Real dual tube amp (12AX7, 12AU7)

Transposer
+6, -6 half-steps

Reverb
8 Modes

Tone Controls
Bass, Mid range, Treble

Sustain
Pedal Drawbars

Wheel
Pitch Bend, Modulation

Panel Controls
Leslie Slow/fast, on/off, break/thru, effect send/return
Vibrato/Chorus ON, V1, V2, V3, C1, C2, C3 with 6 position rotary knob
Percussion Second, Third, Decay fast, Soft
Effect Tube amp, Reverb on
Demo/Pedal sustain
Display switch
Page up/down, Parameter, Value up/down, Rotary encoder,
Menu/exit, Play, Rec, Bank

Volume control
Master volume, Tone control, Tube overdrive

Display
20 character, 2-line back light LCD

Terminal
AC input, line out L/R, Leslie 11-pin, MIDI in1/in 2/out/thru,
Headphone, Foot switch/Leslie switch, Expression pedal
(EXP-100A or EXP-100F with Leslie switch)

Card slot
Compact Flash

Power supply
100V/120V/220V/240V

Dimensions
48"(W) x 26 3/4"(D) x 38 1/8"(H)
Weight
320 lbs (Including Pedal and Bench)

122XB SE

Input
11-pin connector (Single-channel)

Speed
Two-speed horn and bass rotor

Amplifier
40-Watt RMS

Speakers
15inch Woofer and custom horn driver

Dimensions
29"(W) x 21" (D) x 41"(H)

Weight
139 lbs
